Data Cabling Services San Jose, CA
End-to-end network cabling installation for commercial businesses across San Jose and Silicon Valley. From Cat6 drops to fiber optic backbones, server room buildouts to wireless infrastructure — every installation certified and warranted.
8 Service Categories
25+ Sub-Services
25-Year Channel Warranty
Services

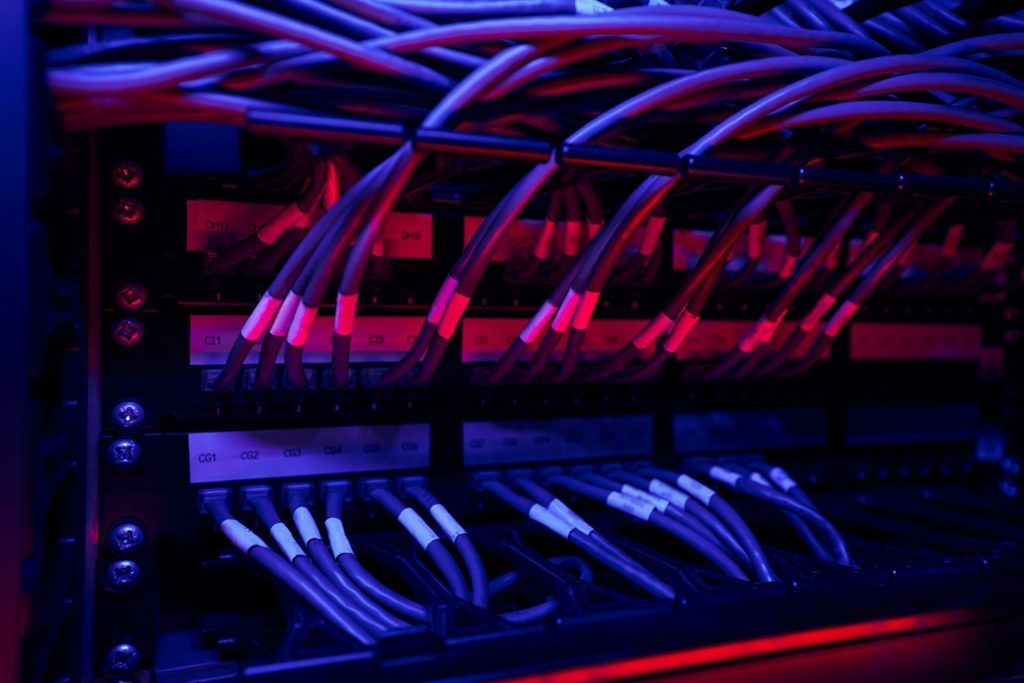

Structured Cabling Installation
The physical backbone of your network — copper cabling installed and certified to ANSI/TIA-568 standards. Supports data, voice, and building systems from a single organised infrastructure.
Best For
- New office builds and tenant improvements
- Office expansions and additional drops
- Legacy cabling upgrades
- Multi-floor commercial buildouts
Standards & Compliance: All installations follow ANSI/TIA-568.2-D for copper cabling. Qualifies for manufacturer extended channel warranties up to 25 years.
Cable Category Comparison
| Category | Max Speed | Bandwidth | Max Distance | Best Use |
|---|---|---|---|---|
| Cat5e | 1 Gbps | 100 MHz | 100m | Small offices, budget installs |
| Cat6 | 1–10 Gbps | 250 MHz | 55m (10G) / 100m (1G) | Standard commercial — most common |
| Cat6A | 10 Gbps | 500 MHz | 100m | Enterprise, data centers, PoE++ |
Cost-effective gigabit cabling for smaller offices and budget installs. Supports 1 Gbps at distances up to 100 metres.
Specs: 1 Gbps · 100 MHz · Up to 100m · ANSI/TIA-568
The standard for San Jose commercial office cabling. Supports 10 Gbps over shorter runs and 1 Gbps to 100 metres.
Specs: 10 Gbps / 55m · 250 MHz · 23 AWG · ANSI/TIA-568
Full 10 Gbps at 100 metres. Ideal for Silicon Valley enterprise environments, data centers, and PoE++ devices.
Specs: 10 Gbps · 500 MHz · PoE++ Ready · ANSI/TIA-568

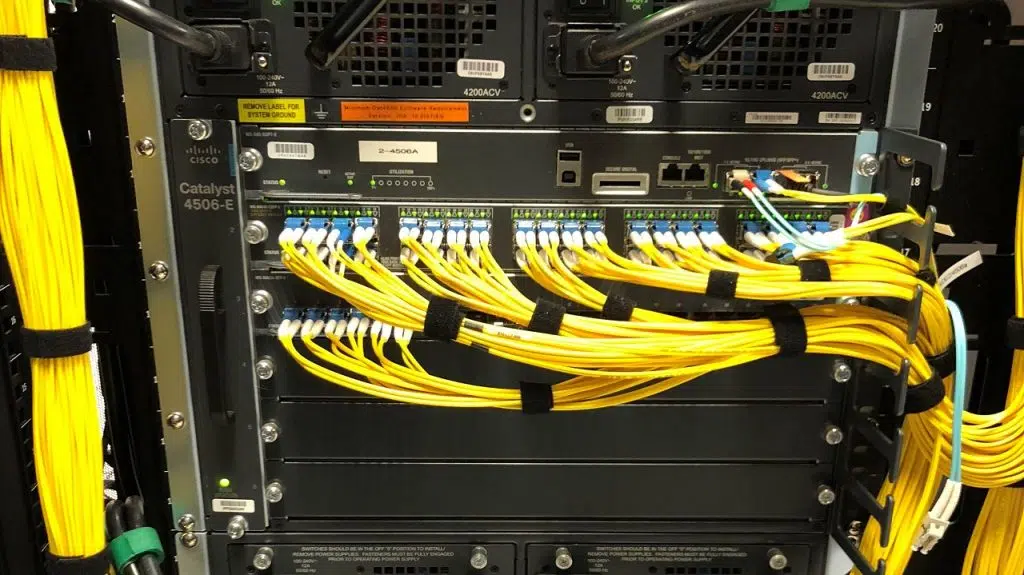

Fiber Optic Cabling Installation
Fiber transmits data as pulses of light, delivering massive bandwidth over long distances with zero electromagnetic interference.
Best For
- Campus and inter-building connections
- Data center backbone cabling
- Runs exceeding 100 metres
- EMI-sensitive environments
- High-bandwidth applications
Standards & Compliance: Installations conform to ANSI/TIA-568.3-D. All terminations OTDR-tested and insertion loss certified.
Fiber Type Comparison
| Type | Core | Range | Speed | Best Use |
|---|---|---|---|---|
| Multimode OM3 | 50µm | 300m | 10 Gbps | Short intra-building runs |
| Multimode OM4 | 50µm | 550m | 10–40 Gbps | Data center, campus |
| Single-Mode OS2 | 9µm | 10km+ | 100 Gbps+ | Inter-building, long runs |
OS2 single-mode fiber for long-distance runs up to 10km+.
Specs: 9µm core · 100 Gbps+ · 10km+ range · OTDR Certified
OM3 and OM4 multimode fiber for intra-building and campus runs up to 550 metres.
Specs: 50µm core · 10–40 Gbps · Up to 550m · OTDR Certified
Fusion splicing and mechanical termination for repairs and new installations.
Specs: Fusion Splice · <0.1 dB loss · SC / LC / ST · OTDR Verified
Network Infrastructure & Rack Installation
The physical infrastructure behind your network — racks, enclosures, patch panels, cable pathways, and telecom rooms engineered for reliability and growth.
Best For
- New server room builds
- IDF / MDF installations
- Rack consolidation and upgrades
- Structured cabling termination points
Standards & Compliance: Telecom room designs comply with ANSI/TIA-942 and ANSI/TIA-569. Grounding per NEC Article 800.
- Network Rack & Cabinet Installation
- Patch Panel Installation
- Server Room Cabling
- Data Center Cabling

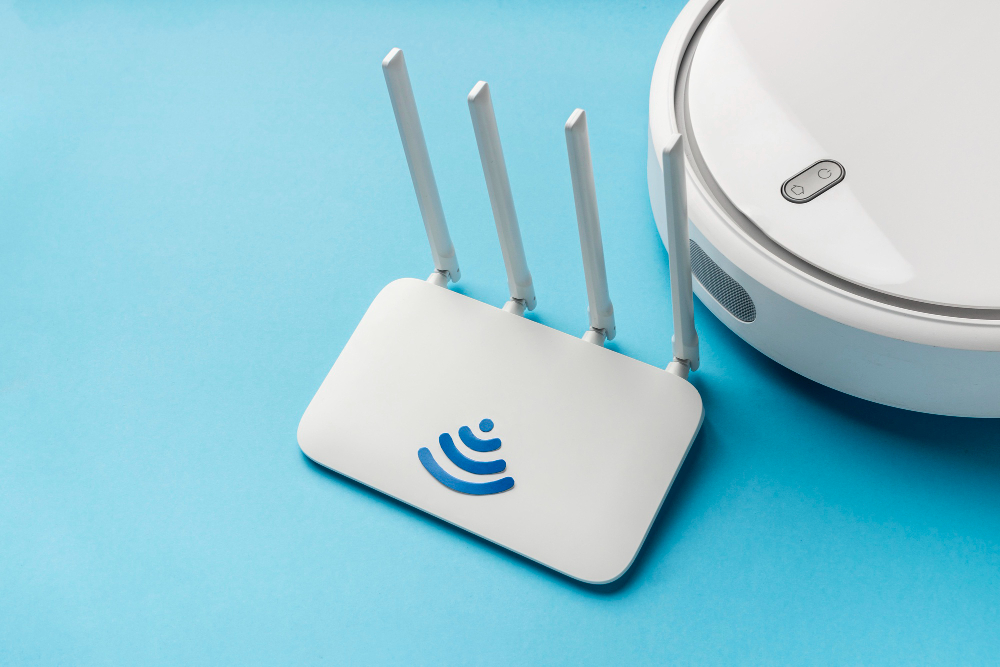

Wireless Access Point & WiFi Installation
Enterprise WiFi deployments across San Jose offices, warehouses, and tech campuses.
Best For
- Office WiFi deployments
- Warehouse & industrial WiFi
- Multi-floor wireless coverage
- WiFi 6 / 6E upgrades
- High-density environments
We install Cat6/Cat6A drops, mount WAPs, and configure PoE infrastructure.

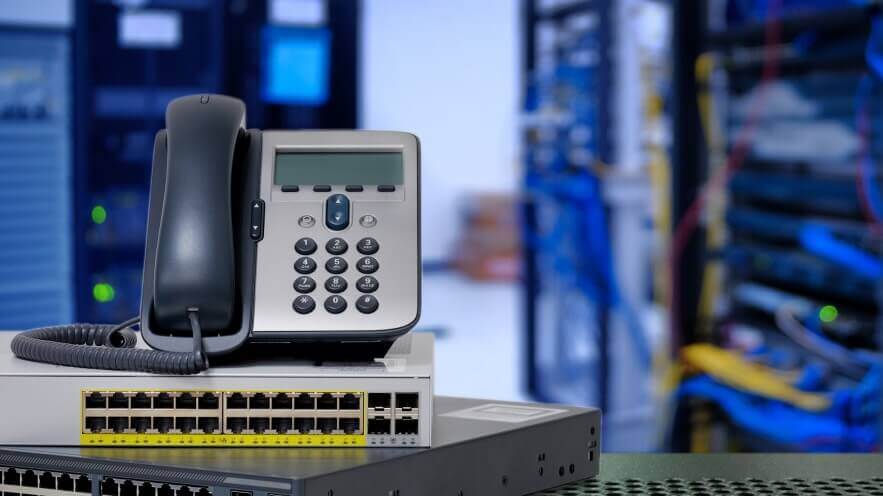

VoIP & Phone System Cabling
Modern VoIP systems require structured cabling infrastructure.
Best For
- VoIP deployments
- POTS to VoIP migrations
- Phone system additions
- Legacy wiring replacements
Cat6 desk drops support both data and VoIP over a single cable.

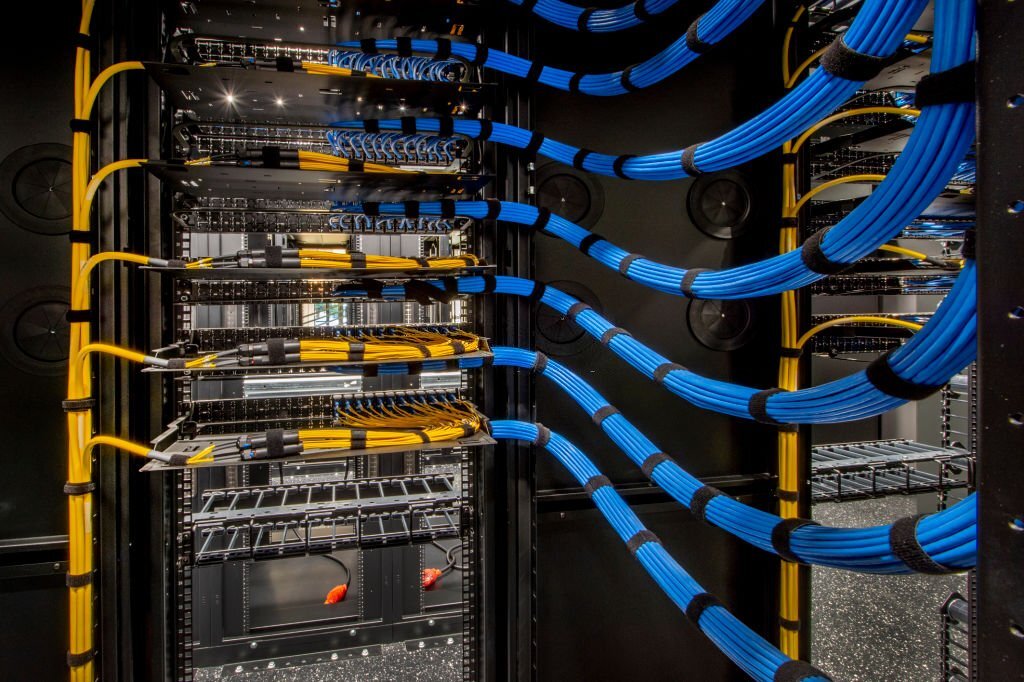

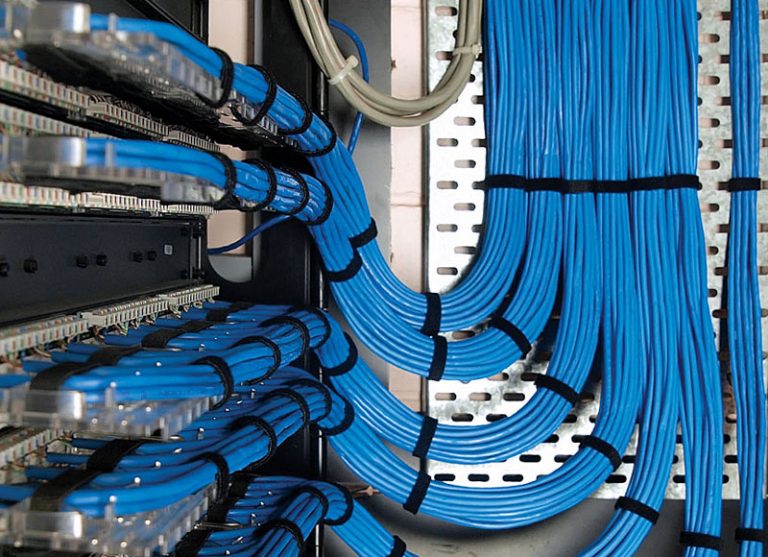

Server Room & Data Center Cabling
Clean, organised, and certified server room and data center cabling built to TIA-942 standards.
Best For
- New server room buildouts
- Data center installations
- Colocation buildouts
- High-density rack deployments
- Existing room reorganisation
Includes rack layout, cable trays, copper and fiber runs, full documentation.
Cable Testing & Certification
Every installation tested with Fluke DSX CableAnalyzer equipment.
Best For
- Post-installation certification
- Performance troubleshooting
- Manufacturer warranty qualification
- Existing cabling audits
Includes Level IV testing and full ANSI/TIA-568 certification reports.

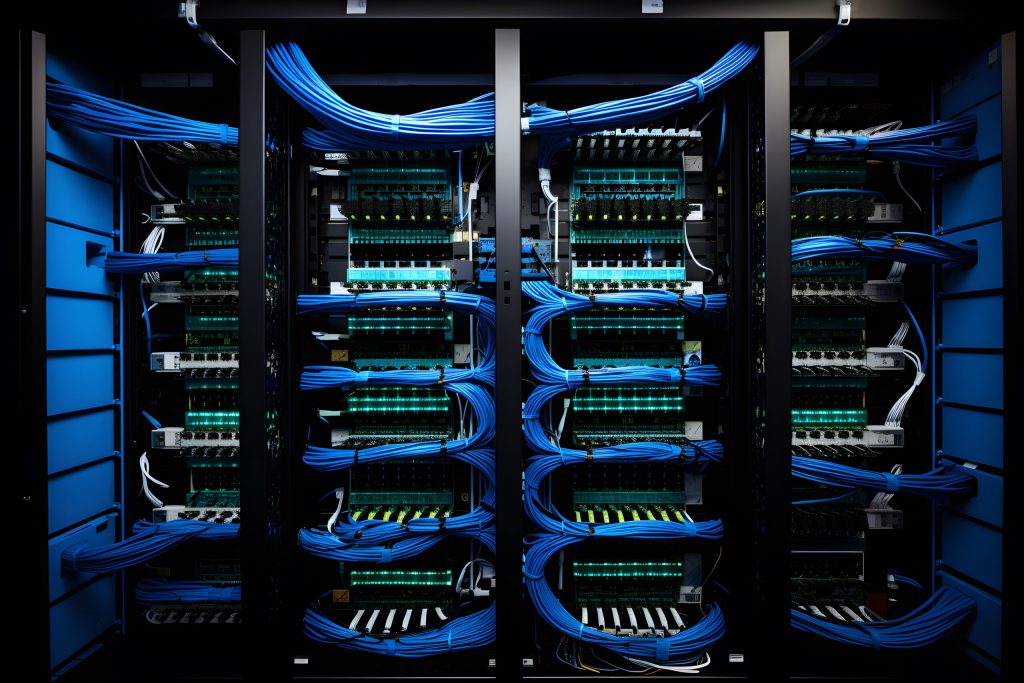

Cable Management & Remediation
We remediate messy wiring closets and implement structured cable management across San Jose businesses.
Best For
- Wiring closet cleanup
- Server room remediation
- Post-construction cleanup
- Documentation catch-up
You receive full port maps, labelling, diagrams, and documentation.
All Services at a Glance
| Service | Sub-Services |
|---|---|
| Structured Cabling | Cat5e · Cat6 · Cat6A |
| Fiber Optic | Single-Mode · Multimode · Splicing |
| Network Infrastructure | Rack Install · Patch Panel · Server Room · Data Center |
| Wireless / WiFi | WAP Installation · WiFi Design |
| VoIP & Phone | VoIP Cabling · Phone Wiring |
| Server Room | Build-Outs · Cable Tray |
| Testing & Certification | Cable Testing · TIA-568 · Troubleshooting |
| Cable Management | Management Install · Closet Cleanup · Labelling |
Ready to Get Started?
Tell us about your project and we’ll respond within 1 business day with a detailed scope and quote.
